Portable Davit Crane 5PT20

907 kg capacity portable Davit Crane

  • Load ratings up to 907 kg portable, heaviest part component 34,0 kg
  • Rugged and affordable
  • Manual or power winch operation (E2)
  • 360° rotation
  • Boom adjustable to meet wide range of height and reach combinations
  • Easy, No-Tools Assembly/Disassemb

Show more

Product number:

907 kg capacity portable Davit Crane

  • Load ratings up to 907 kg portable, heaviest part component 34,0 kg
  • Rugged and affordable
  • Manual or power winch operation (E2)
  • 360° rotation
  • Boom adjustable to meet wide range of height and reach combinations
  • Easy, No-Tools Assembly/Disassembly (all individual components less than 34,0 kg)
  • Variety of bases
  • 2-Year warranty
  • Proof of load 125% of WLL (Optional)

Machinery directive: 2006/42/EC as amended by Directive 95/16/EC.

  • Marking: CE-marked
  • Finish: Powder coat
  • Note: Five corrosion-resistant surfaces (powder coating (5PT20), galvanized (5PT20G), stainless 304 (S) and 316 (S316) and three layers of epoxy)

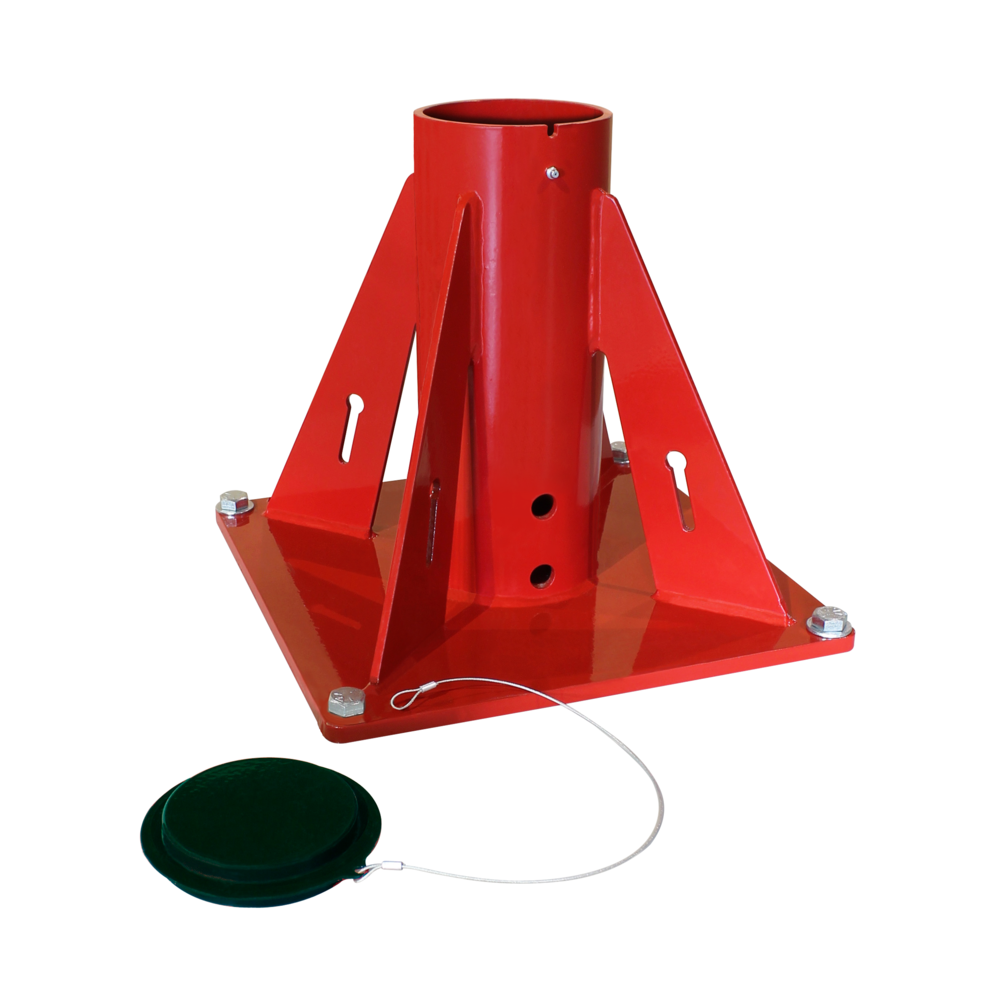

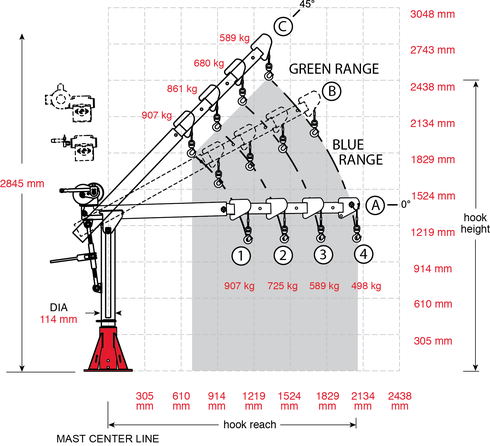

Commander 2000, 5PT20 with Pedestal Base

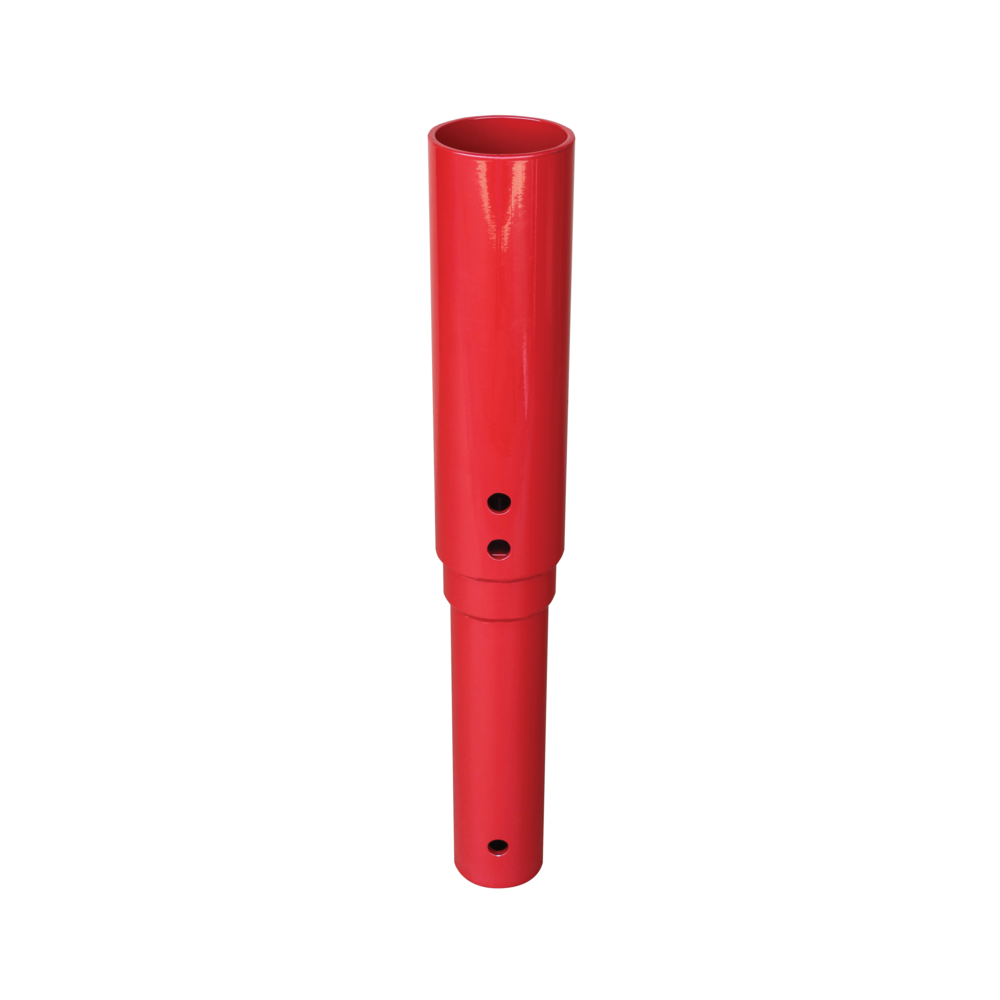

* Optional Base extension can provide 380mm more hook height

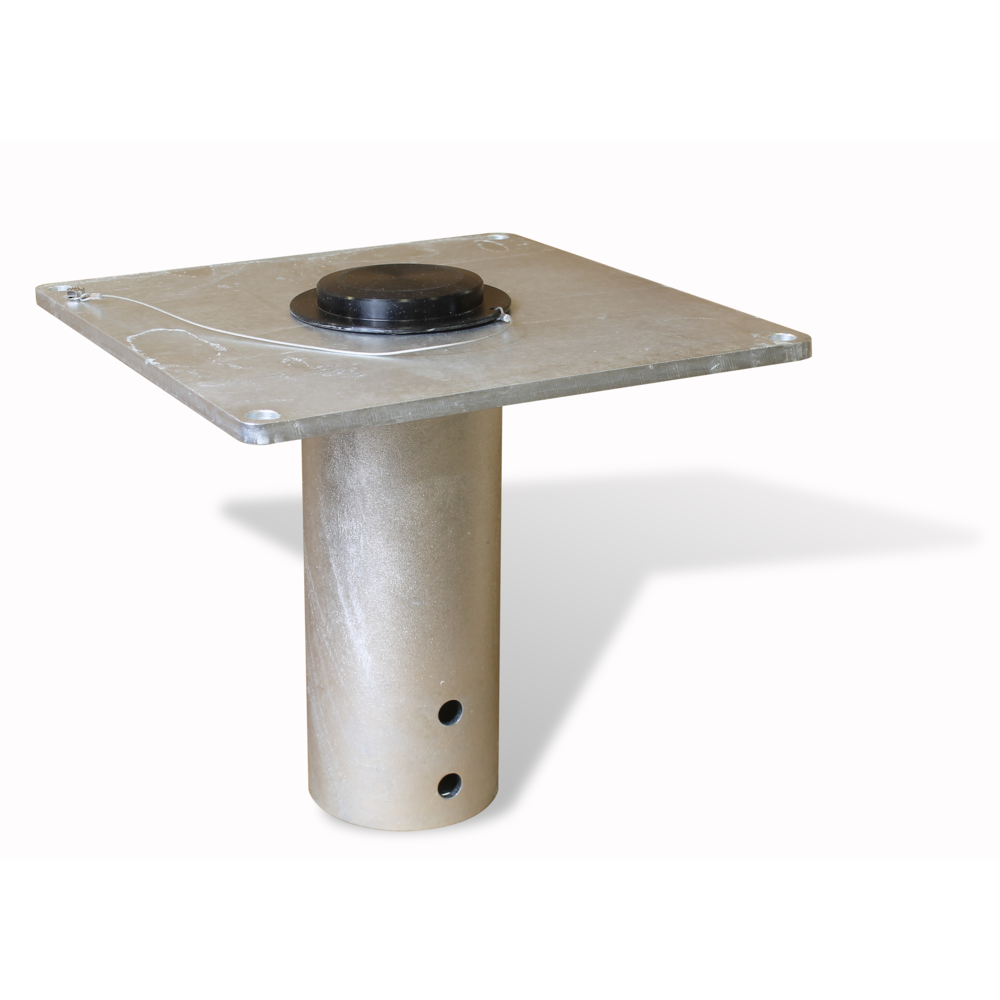

Commander 2000, 5PT20 with Flush or Wall base
