Celtspēju tabula

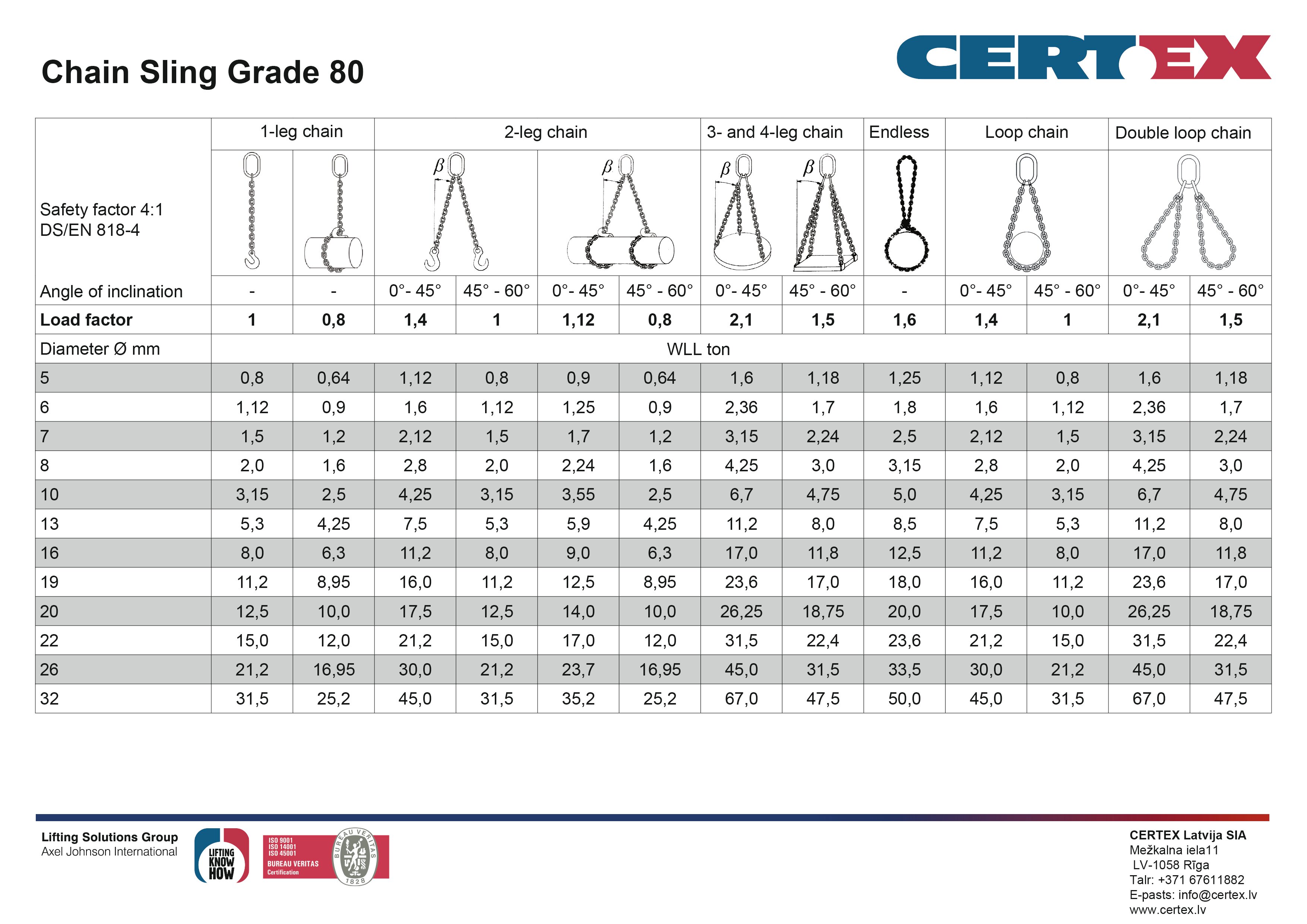

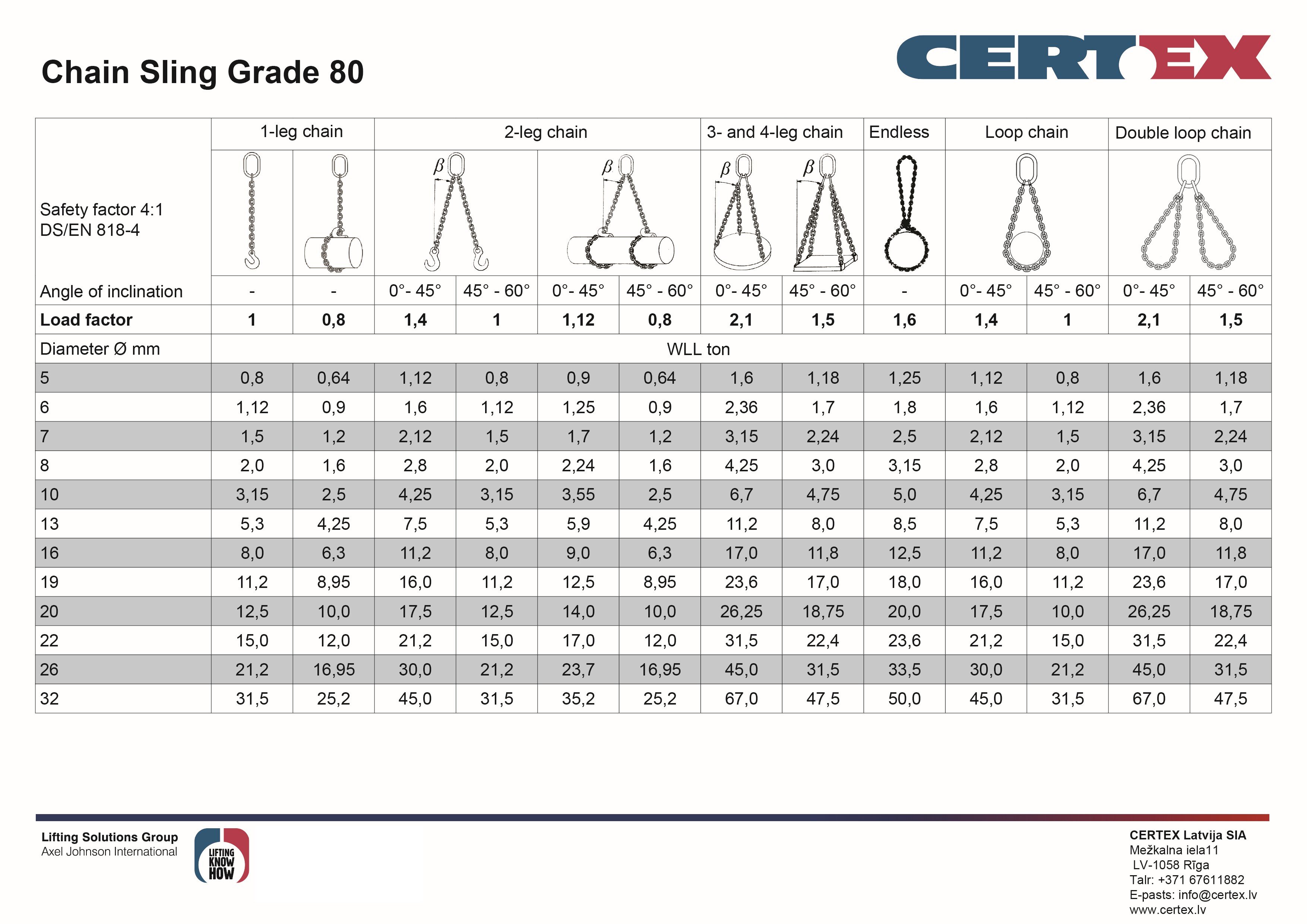

General: Tables specify the maximum load for common chain dimensions in grade 8 for use in slings.
|
|
Single | 2-legs & basket* | 3-4 legs* | Endless | ||||
|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
|||
| Staright | Choked | Basket | 0°-45° | 45°-60° | 0°-45° | 45°-60° | Choked | |
| Factor (KL) | 1 | 0,8 | 2 | 1,4 | 1 | 2,1 | 1,5 | 1,6 |
| Chain Ø (mm) | WLL in ton for chain grade 8 | |||||||
| 6 | 1,12 | 0,9 | 2,24 | 1,6 | 1,12 | 2,36 | 1,7 | 1,8 |
| 7 | 1,5 | 1,2 | 3 | 2,12 | 1,5 | 3,15 | 2,24 | 2,5 |
| 8 | 2 | 1,6 | 4 | 2,8 | 2 | 4,25 | 3 | 3,15 |
| 10 | 3,15 | 2,5 | 6,3 | 4,25 | 3,15 | 6,7 | 4,75 | 5 |
| 13 | 5,3 | 4,2 | 10,6 | 7,5 | 5,3 | 11,2 | 8 | 8,5 |
| 16 | 8 | 6,4 | 16 | 11,2 | 8 | 17 | 11,8 | 12,5 |
| 20 | 12,5 | 10 | 25 | 17 | 12,5 | 26,5 | 19 | 20 |
| 22 | 15 | 12 | 30 | 21,2 | 15 | 31,5 | 22,4 | 23,6 |
| 26 | 21,2 | 17 | 42,4 | 30 | 21,2 | 45 | 31,5 | 33,5 |
| 28 | 25 | 20 | 50 | 33,5 | 25 | 50 | 37,5 | 40 |
| 32 | 31,5 | 25,2 | 63 | 45 | 31,5 | 67 | 47,5 | 50 |
| 36 | 40 | 32 | 80 | 56 | 40 | 85 | 60 | 63 |
| 40 | 50 | 40 | 100 | 71 | 50 | 106 | 75 | 80 |
| 45 | 63 | 50 | 120 | 90 | 63 | 132 | 95 | 100 |
*When multi-leg chain slings are used in choke hitch - reduce value by 20%
